Cognito Forms - Merge Field List

Created by Martin Parkinson, Modified on Wed, 22 May at 4:13 PM by Graeme Orchard

This article contains a list of common Merge fields which you may want to add to your Cognito Form.

These fields need to be added to your form as Calculation Fields and should immediately precede the field containing the actual data you wish to capture.


One of these fields marked as [Internal] needs to precede every Database field you want to import into Influence.



Contents   (Click an item to jump to the section)


TABLE OF CONTENTS




Example

Below is an example of how you should setup the Calculation field within your form to indicate that the next field contains data to be imported into Influence. When adding these fields make sure that the Type is Text  (not Yes/No, Number, etc.)







Web Form Fields (Tags)

Below are listed the most common fields for each of the areas of the system that the form information can be uploaded into.


NOTE: Any fields of the candidate record which are not listed, can easily be found by looking them up within the system, and most of these can then be added and imported from the form. See later on in this article for information on how to do this.



Template Forms (Examples)

Below are links to example Template Forms. We suggest that you import these into your own Cognito account, then adapt these to suit.

For more information about importing Templates into your Cognito account see their documentation available HERE



FORM LinkDescription
Candidate Registration Formhttps://tinyurl.com/3m5h6r5zA form designed to collect detail for new candidates.
Availability Form *https://tinyurl.com/2p8j4h47An example form to collect candidate availability for existing workers.
Candidate Reference Request Form *https://tinyurl.com/yckn3wvnA form to send to candidates to request details of referees.
Referee Form *https://tinyurl.com/2p8aw3jeA form to send to referees to provide details about applicants/candidates.
Update Bank Details Form * https://tinyurl.com/2p9x2bkpA form to send to candidates for them to update their bank details.
Update XXXX Form *https://tinyurl.com/55wyddcsA generic form for Updating an existing candidate - just add the specific info that you want to add after the first section.


NB: Items marked * are designed to update existing records; applicants will need to fill the form with their Forename, Surname, Reference No. and either Email or Mobile No. in order for the form to update the correct record when imported.
These 'update Forms' also contain an example of a Merge Field that can be used on the email template in Influence to Pre-Fill the form with these details.



Candidates Item Fields (Tags)

Below are a list of most of the common fields from the candidate record and the relevant Calculation field (Tag) you will need in Cognito in order to load into them.

Influence Field
 Label
Calculation field for Cognito (Tag Name)
Reference No="[[CAND_REF]]"
Title="[[CAND_TITLE]]"
Forename="[[CAND_FORENAME]]"
Surname="[[CAND_SURNAME]]"
AKA / Known As="[[CMC_CONT_USR_ALPHA_2]]"
Home Address="[[CAND_ADDR]]"
House No.="[[CAND_ADDR_HSE_NO]]" (This will bring in the building No. separately)
Address Line 1-6 (To bring in lines individually)="[[CAND_ADDR_LINE_?]]"   where ? is any number 1-6.   Line 2 is ususally Road Name
Line 5 is usually Town
 Line 6 is usually County/Country
Postcode  (Optional)="[[CAND_POSTCODE]]"
Home Phone="[[CAND_PHONE]]"
Mobile="[[CAND_MOBILE]]"
Email Address="[[CAND_EMAIL]]"
Linked-In/Twitter="[[CAND_SOC_NET_SITE1]]"  or
 ="[[CAND_SOC_NET_SITE2]]"
Date of Birth="[[CAND_DOB]]"
Contact Tick Boxes (1-20)="[[CAND_CONT_USR_CB_1]]"
="[[CAND_CONT_USR_CB_2]]"
etc.      (Replace number with 1 - 20 as needed)
Current Role="[[CAND_POSITION]]"
Current Basic="[[CAND_CURRENT_SAL]]"
Current Employer="[[CAND_CURR_EMP]]"
Sought Role="[[CAND_JOB_CODE]]"
If you have several copies of this in the form, each will go into a subsequent sought-role on the candidate, ie.
Sought Role1, Sought Role2, Sought Role3,...etc.
Sought Role 2="[[CAND_JOB_CODE_2]]"
Can be used to assign the role to a specific 'slot', ie slot2
Sought Role 3="[[CAND_JOB_CODE_3]]"
Can be used to assign the role to a specific 'slot' ie, slot3
Sought Role 4-10Similar format to above, for slots 4 - 10
NI Number  **="[[CAND_NAT_INS]]"
Professional Ref="[[CAND_PRO_REF]]"
Summary Text="[[CAND_*NOTES]]"
Area  Code *="[[CAND_AREA]]"
Work Area 2-10
Only possible from Version 1.00.20.301 or later
Repeat the above field as many times as necessary
????Any field on the candidate record can be added by finding the correct 'Tag' for the field.



*  When using the [[CAND_AREA]] field, the system will add the area to the next 'Free' slot on the candidate. i.e. If AREA 1,2 and 3 were already filled, then the information would be added as AREA 4.

When loading AREA's the Data should be the Description and not the CODE
 e.g.  WMID - West Midlands  should be entered as West Midlands.


** Often the NI number for a candidate is stored/set as a Compliance Item, so you may need the field  ="[[CMPL_NI_QUAL_REF]]"  (Assuming the code 'NI' has been used for the compliance items. )



Candidate Special Fields Examples

PrefixFLD NameColumn NameTag NameResult
CAND*NOTESSummary Text="[[CAND_*NOTES]]"Text in this field is added to the Candidate Summary Text
NB: The *NOTES field above can be included multiple times within the same form; each instance will append the new notes to the 'Summary' tab of the candidate record in your Influence Database.


Attributes
{Replace ???? with the short Code for the attributes}
="[[CAND_*ATTRIBS_????,CAND_*ATTRIBS_????, etc]]"
Availability= "[[BKTY_TYPE=[All Day(AV),Morning(AM),Afternoon(PM),N/A(NA),Standby(SBY)]]]"

The field is of the format
= "[[BKTY_TYPE=[Description1(??),Description2(??),Description3(??),etc]]]"
Where 'Description' is the name of your Booking type and (??) is the code. Only booking types that are ticked as' WebForm' can be imported in this way.


NOTE:  The Attributes and Availability tags shown above will need to be tailored to suit your system, and are designed to go in front of a Rating Scale field. (NB: Availability is only available after Influence version 1.00.21.310 )



Back to Top


Candidates Attributes Field (Tags)

It is possible to import Attributes (Skills) using a Cognito Form.




i) Candidate Attributes using a Rating Scale Field

Rating scale field types are typically used to get a rating in a survey but can be used to import attributes.


Step 1:

On you form, add a Rating Scale field and make the questions your Skills and set it as a Scale 1-5


If you simply wish to capture a Tick for the attribute then setup the Rating Scale field to use a Custom Scale with ratings of Yes/No  (See below)



Step 2:

The Calculation Field (Tag) that you want to add in front of your Rating Scale field is


="[[CAND_*ATTRIBS_????,CAND_*ATTRIBS_?????,CAND_*ATTRIBS_????]]"


Where you replace the ???? with the relevant 'SHORT CODE' for the Attribute.
You can find this in Influence by going to Maintenance > Setup > Attribute Maintenance then looking to see the


Example:
If you had skills of Kisam Kdb7, MS SQL, Mysql and Oracle8 you would need to create a skill code as:

="[[CAND_*ATTRIBS_KSMKDB7,CAND_*ATTRIBS_MS,CAND_*ATTRIBS_MYSQL,CAND_*ATTRIBS_ORACLE]]"


Back to Top



Compliance Item Fields (Tags)

Compliance Codes must be valid Compliance Codes in Compliance Setup with Portal/Form enabled  i.e.


See below for list of fields.

Column NameCalculation field for Cognito (Tag Name)
Issue Date="[[CMPL_XXXX_QUAL_DATE]]"
Expiry Date="[[CMPL_XXXX_EXPIRY_DATE]]"
Reference="[[CMPL_XXXX_QUAL_REF]]"
Stage="[[CMPL_XXXX_STAGE]]"

NB: The 'Data' field for this should be a 'Choice box' in Cognito and the choices should match the description of the stage.
Notes
Only available after v1.00.21.089
="[[CMPL_XXXX_NOTES]]"

NB: If updating an existing record previous notes will be overwritten.


NOTE: When adding these fields you will need to replace the XXXX with the Compliance CODE for the item, e.g. Passport might be PASS, DBS Check might be DBS, etc.  This means the merge field would look like ="[[CMPL_PASS_EXPIRY_DATE]]"



Back to Top



Compliance Documents (Tags)

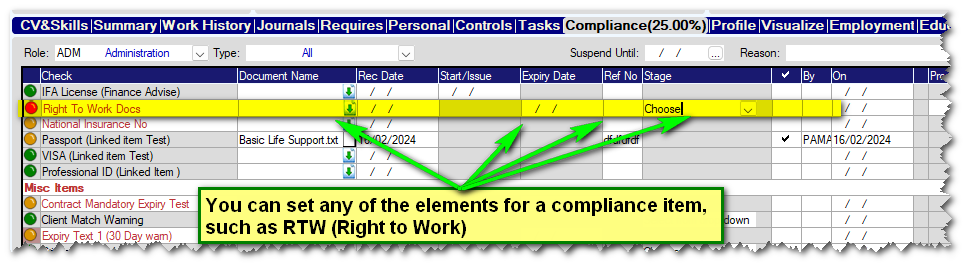

As well as being able to set information for compliance items, such as Issue Date, Expiry Date, etc, you can also get people to upload copies of the document itself.


WhatCalculation field for Cognito (Tag Name)
Compliance Document[[DOC_CMPL_XXXX]]

You need to replace the XXXX with the relevant Compliance CODE


Important: Compliance Codes must be valid Compliance Codes in Compliance Setup with Portal/Form enabled (Ticked) on the Compliance definition within Influence. Replace XXXX with the relevant compliance code, e.g. ="[[DOC_CMPL_PASS]]"



Back to Top




Candidate Documents (Tags)

It is possible to upload documents which will appear on the DOCS page of the candidate record. Documents can be a general document, or a specific document, linked to a defined 'Slot' on the candidate record.


Document Slot code must be a valid Prefix. (See Parameters Enigma, Candidate Documents) - your system may be configured differently.


Document Slot CodeCode DescriptionCalculation field for Cognito (Tag Name)
CVOriginal CV="[[DOC_CAND_CV]]"
RGRegistration Form="[[DOC_CAND_RG]]"
REFReferee Document="[[DOC_CAND_REF]]"
PHOTO (Special case)Candidate ID Photo="[[DOC_CAND_PHOTO]]"
Any other 'Slot'?????="[[DOC_CAND_XXXX]]"
Where XXXX is replaced with the relevant 'short code' for that slot.
No SlotOther Document="[[DOC_CAND]]"


Back to Top





Policy Opting In or Out

Policy Manager Code must be valid and a Published version exists


PrefixPolicy CodeCode DescriptionValue is Yes or NoTag Name
PMGDPRGDPRYes[[PM_GDPR]]
PMPRIVPrivacy NoteNo[[PM_PRIV]]


Back to Top





Candidate Company Trade Details Fields

These fields are usually seen on the 'Controls' or 'Financial' tab of the candidate record, but are actually held in a separate table. (Hence why the fields start CTD_  )


Column NameCalculation field for Cognito (Tag Name)
Company Name="[[CTD_COMP_NAME]]"
Trade Address / Company Address="[[CTD_ADDR_LINE_?]]"
{where ? is any number 1-6}


VAT Number="[[CTD_VAT_NO]]"
Company Registration No="[[CTD_COMP_REG_NO]]"
Phone Number="[[CTD_PHONE]]"
Email Address="[[CTD_EMAIL]]"
Website="[[CTD_WEB]]"


Bank Account Number="[[CTD_ BANK_AC_NO]]"
Bank Sort Code="[[CTD_BANK_SORT_CODE]]"
Bank Name="[[CTD_BANK_NAME]]"


Back to Top




How to Find the Calculation fields (Tags) for any candidate field

You can easily find the relevant calculation field for any candidate item not listed above in the following way.


NB: Whilst most fields will work, some fields or drop-down code table selections may not be able to be imported as part of a Form import. If you find this is the case, please contact us as it may be something that can be added in a future release.



- Login to your database as the UserID "ADM"

- Go to Maintenance > Database Management > Table Maintenance

- Expand and select the Candidates 0001 table, then double-click the table name.

- When you see the field list displayed, scroll down to find the item you want, and click on the field name.

- Within the Column Definition for that field you will see an item labelled [Word Access]

This is the info you want as the Calculated field in Cognito, but you will need to replace ENID with CAND.

Example

In the example above, the 'tag' for the field Nearest Station is [[ENID_NR_STAT]] so what is needed in Cognito is  ="[[CAND_NR_STAT]]"


Remember: Whilst it will be possible to import most fields of the candidate record in this way, there may be a few fields - particularly those with a drop-down/code table - that cannot be imported in this way.




Back to Top

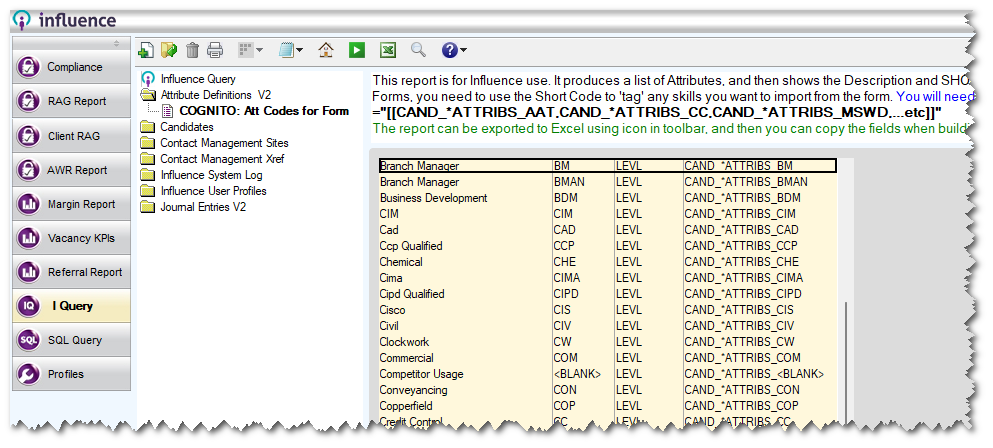

IQ Report to help Find Compliance Item Codes

When adding TAGS to the FORM to map information relating to compliance items, you need to know the CODE for Each compliance item.  e.g. A Compliance items for National Insurance No. may have a CODE of "NI"

To help find these the attached Report can be added to the IQ Reports and will provide a LIST of Compliance items on your system and their CODE.



To Install the Report

Simply download and Drag/Drop the attached file onto the [I Query] workbench to install the report.  It can be run using the [Run] button at the bottom of the screen, and should be run to the Workbench.

(This is only possible on systems newer than 1.00.20.315 )


Back to Top
